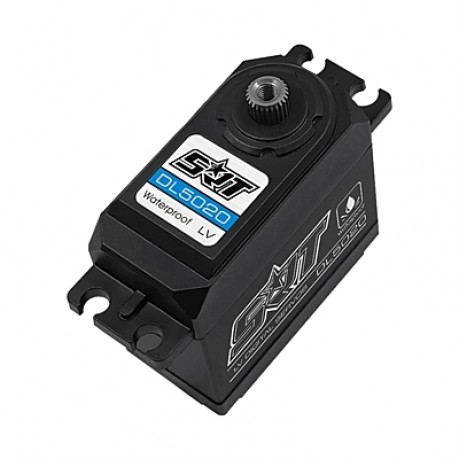

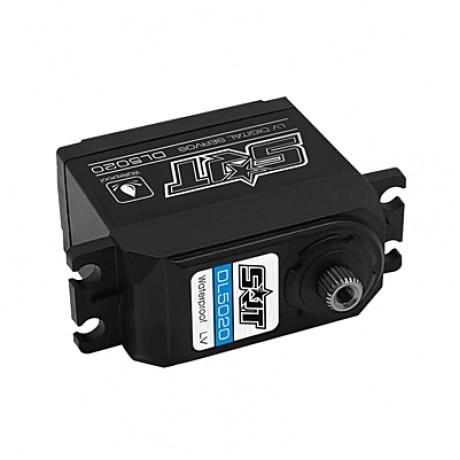

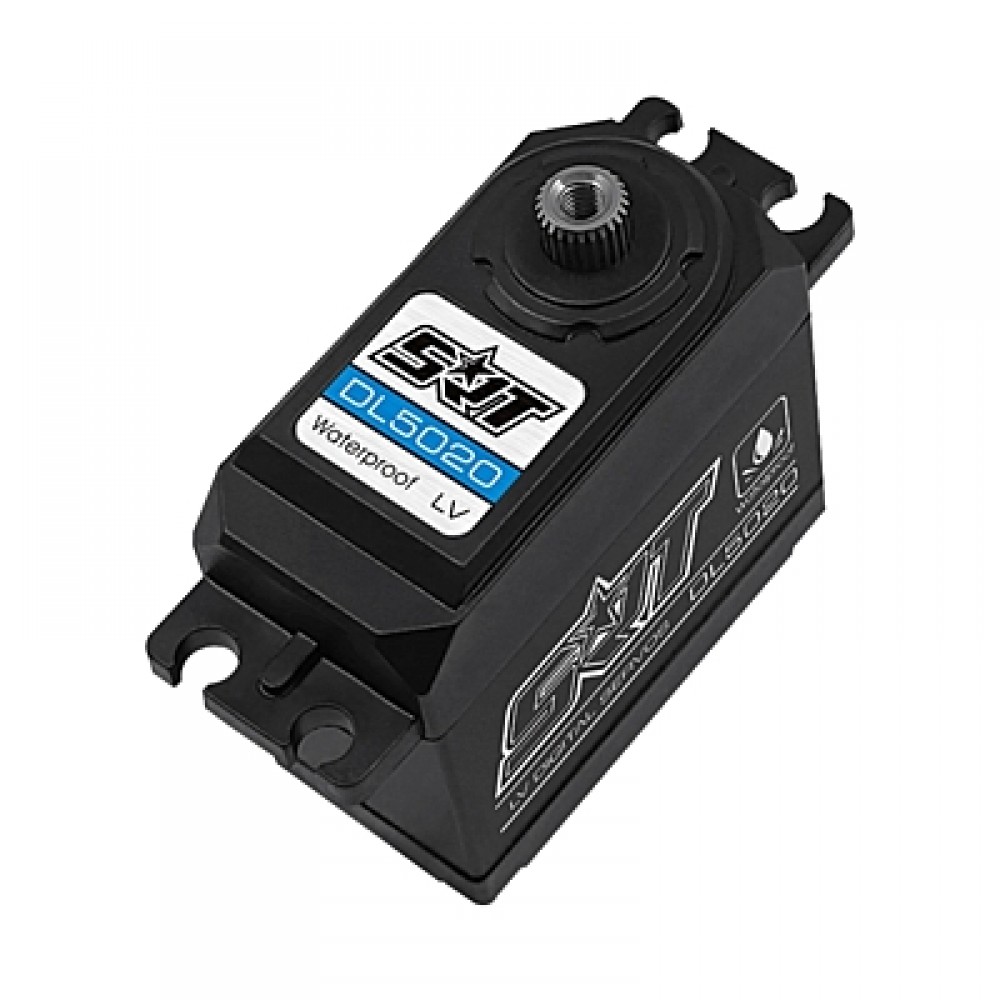

SRT DL5020 Waterproof (0.16s/20.0kg/6.0V) Servo
35.00€
Features:
- Ideal for 1/10 on road and 1/8 off road scale applications
- Intermediate aluminum case
- NMB dual main bearings
- Superior waterproof
- 25T output shaft
- 1-Year Limited Warranty
Specifications:
| Type | Digital |
| Bearing | Dual |
| Motor Type | DC |

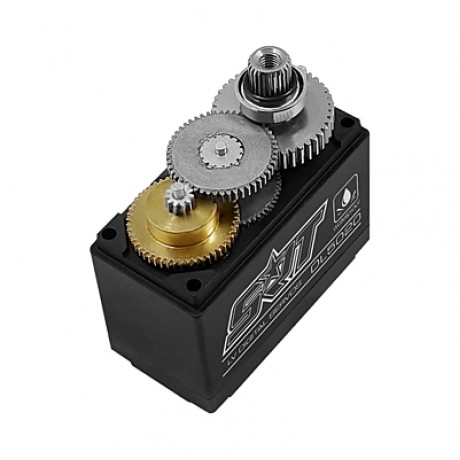

| Gear Type | Metal |
| Gear Material | Titanium & Alu |
| Control System | Pulse width control |
| Working Frequence | 1520μs / 330hz |
| Operating Voltage | DC 4.8-6.0V |
| Operating Temperature Range | -10 to + 60 degree |
| Operating Speed | (4.8v): 0.18 sec/60 degrees at no load (6.0v): 0.16 sec/60 degrees at no load |
| Stall Torque | (4.8v): 16.5kg.cm (229.1 oz/in) (6.0v): 20.0kg.cm (277.7 oz/in) |
| Potentiometer Drive | Direct drive |
| Dimensions | 40.7 x 20.5 x 39.5 mm |
| Weight | 65.0g |
| Connector Wire Length | JR 250 mm |
