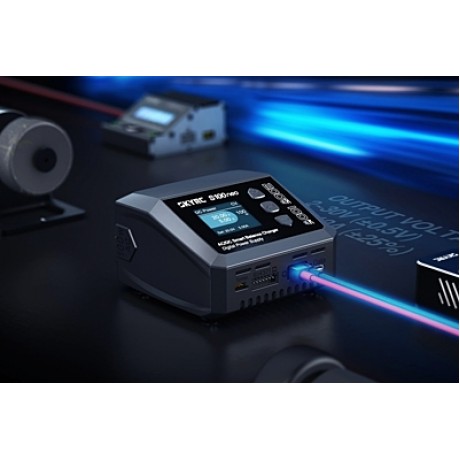

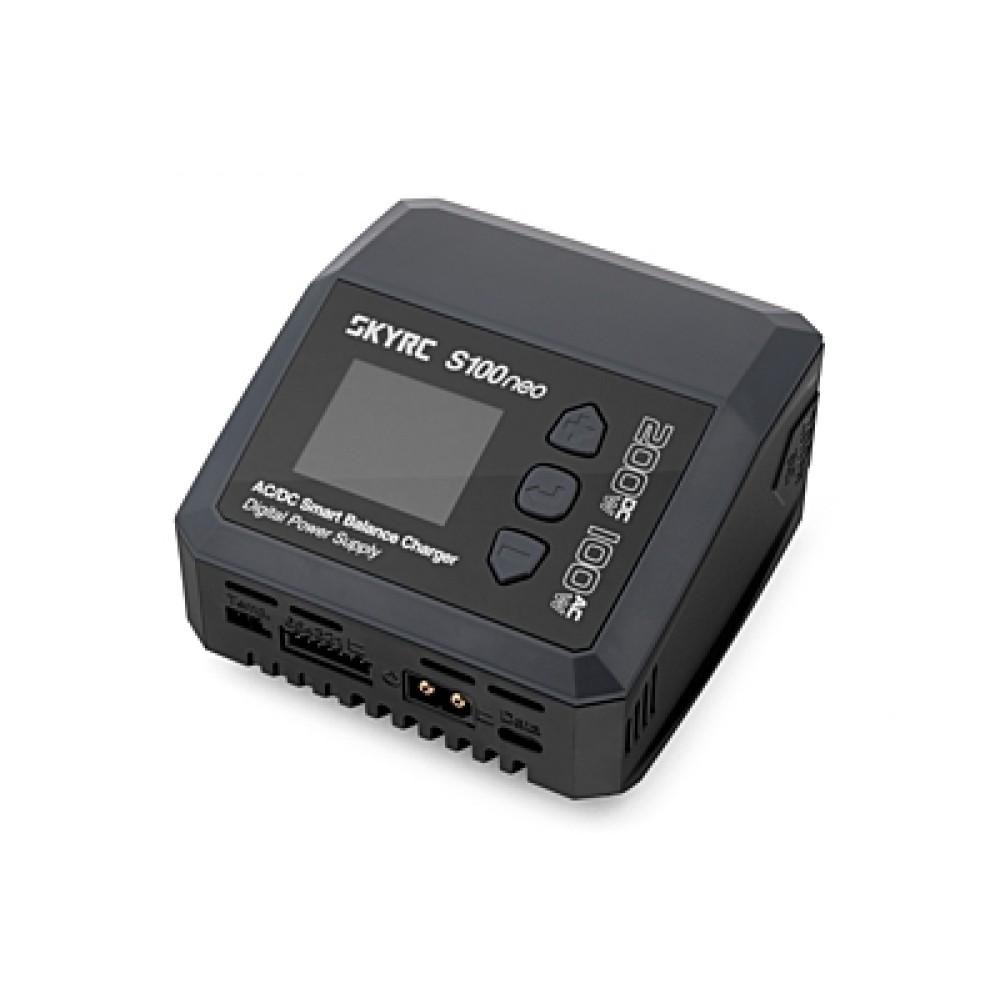

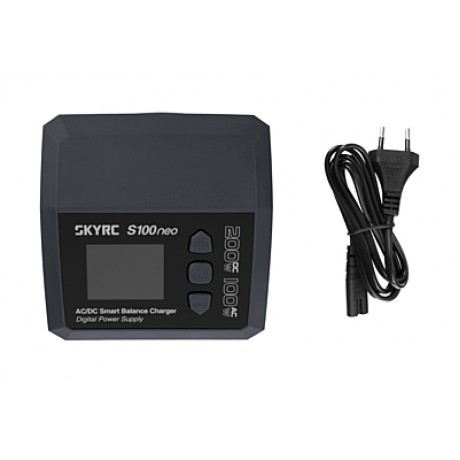

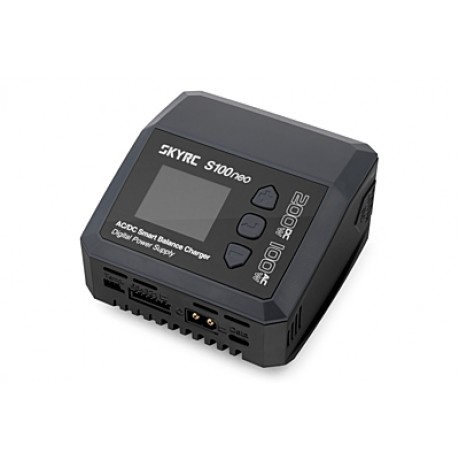

SkyRC SK100202-01 – S100neo AC/DC Smart Balance Charger
Legendary Again: Evolution Never Stops
Building on the renowned legacy of the SkyRC e680, S100neo showcases an
impressive AC 100W/DC 200W power capacity, blending versatility with
powerful charging capabilities. The vibrant Color LCD screen enhances
the user experience with intuitive navigation and easy monitoring.
S100neo is more than just a charger; it also doubles as an advanced
Digital Power Supply, offering precise and efficient charging with
unparalleled accuracy in both Constant Current (CC) and Constant Voltage
(CV) modes. At the cutting edge of RC charging technology, SkyRC’s
S100neo combines our time-tested performance with innovative features,
perfectly catering to the ever-demanding RC enthusiasts.
Single Output, Coupled with Neo
Infused with our latest ‘neo’ technology for enhanced efficiency and
power, S100neo is masterfully engineered to offer a highly focused and
remarkably efficient charging experience, yet it remains power-packed.

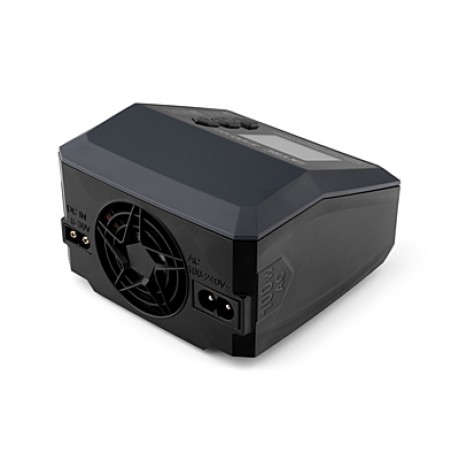

With dual power input, S100neo effortlessly provides up to 100W from an
AC source and excels with a potent 200W output on a de facto standard
XT60 DC plug for RC hobbyists. This versatility ensures that S100neo
meets a wide range of charging demands, whether at your pit table or in
the field.
Ready for Action – Quicker with 12A
S100neo effortlessly charges at up to 12A, a notable advancement for RC
aficionados who value charger current’s critical role. Outperforming its
predecessor, the e680, which peaks at 8A, S100neo not only accelerates
the charging process but also ensures a more efficient power-up. Speed
Meets Efficiency!
Charging Elevated with Unmatched Balance
Experience unparalleled precision in charging with S100neo’s advanced
balancing technology. With a robust balancing current of 1000mA, S100neo
greatly surpasses the e680’s 300mA, offering faster and more efficient
battery balancing. This ensures each cell is optimally charged,
achieving perfect harmony and peak performance.
Do More With One Charger!
With exceptional versatility, S100neo can charge a wide range of battery
chemistries. This powerhouse can charge from LiPo and LiFe to Li-ion,
LiHV, Pb, NiMH, and NiCd. You are turbocharging your time with a single
charger that can handle multiple battery types. Whether you’re an RC
guru, a beginner, or somewhere in between, S100neo is the reliable and
adaptable choice that ensures optimal performance for all your
batteries. Unlock the full potential of your battery arsenal with
S100neo – versatility multiplied capability.
Discharging Multiplied by Balance Port
The built-in balance port enables S100neo to discharge faster, allowing
it to discharge at up to 20W when used in conjunction with the main
port. In contrast, the discharge rate when using the main port alone is
limited to just 5W.
Versatile 2-in-1: Check Your Batteries Easily
When the balance port is connected, S100neo is a versatile battery
checker capable of measuring cell voltage and the balance state of LiPo,
LiHV, LiFe, and LiIon battery. The overall voltage and individual
cell’s voltage of will be displayed on the fly to help tell whether the
battery is fully charged or depleted and whether it requires balancing.
It will work as a safeguard for batteries, as, for example, LiPo battery
is renowned for their high energy density and lightweight properties.
Proper care and monitoring are crucial to ensure their safety and
longevity.
Digital Power
S100neo is not only professional in charging but also can act as a
digital power supply. After clicking on the menu, S100neo is ready for
your application, offering an optimal voltage of 2-30V with 0.1V
increment and adjustable 0.1-12A current.
Battery Thermal Guardian
Crucial for RC enthusiasts, S100neo’s Thermal Cut-Off* ensures battery
safety and reliability. When a temperature sensor** is connected, the
charger automatically halts charging at a preset temperature to prevent
overheating.
*Currently, Thermal Cut-Off is available for NiMH/NiCd batteries, with plans to extend it to other battery chemistries soon.
*The Thermal Cut-Off feature is currently available for NiMH/NiCd
batteries and will be extended to other chemistry batteries soon.
**The optional temperature sensor cable (SK-600040-01) is not included with the charger and must be purchased separately.
Tuning Motors to Perfection with Run-in
S100neo boasts a Motor Run-in capability crucial for brushed motors’
optimal performance. This function fine-tunes the motor by varying
speeds for ideal brush alignment, enhancing efficiency and reducing
wear. It’s vital for RC enthusiasts to ensure their gear’s longevity and
peak performance.
Enhanced Protection, Assured Safety
The SkyRC S100neo charger is built-in with several essential safety features ensuring optimal charging safety.
Short-circuit Protection
Over-temperature Protection
Capacity Protection
Time-out Protection
Cut-off Protection
Over-voltage Protection
V0 Flame-retardant
ColorX: Easy to charge, Easy on the eyes.
Step into the world of the Neo series chargers and discover the ColorX
interface, where ease of use meets visual appeal. Designed specifically
for RC charging, the light cyan and green color scheme enhances focus
and adds a touch of style. Featuring a responsive Web2.0 menu and
smartphone-like icons, the interface offers an intuitive user
experience. Welcome a bold, new way of charging — where functionality
meets fun.
Seamlessly Connect, Effortlessly Upgrade!
Effortlessly connect your S100neo to your PC via the versatile Type-C
port. With Charger Master, take full control and enhance your charging
experience. Customize charging rates, monitor battery health, and
optimize performance for longer battery life. Upgrade with ease using
the app. Enjoy a fast and reliable upgrade process to enhance your
charger’s capabilities. Stay connected, stay updated, and enjoy a
happier charging experience.
Specs:
Case Material: PC-ABS V0
Case Size: 105x105x62mm
Weight: 340g
Display Type: TN
Display Size: 1.77 inch
Display Panel Active Area: 28.03*35.04mm
Display Resolution: 128×160 Pixel
Display Number of Colors: 262K
DC Input Voltage: 6-30V
AC Input Voltage: 100-240V 50/60Hz
Charger power: AC: 100W MAX / DC: 200W MAX
Discharge power: Max. 20W based on 6S (4.2V/S)
LiPo/LiHV/LiFe/LiIon: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 3S/6S/12S
Charge current: LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-12.0A
Discharge current: LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-2.0A
Balance current: LiPo/LiFe/LiIon/LiHV：Max. 1000mA
Operation:
LiPo/LiFe/LiIon/LiHV: Balance charging, Charging, Discharging, Storage
NiMH/NiCd: Charge, Discharge, Cycle charge-discharge, Cycle discharge-charge, Repeat charge
Pb: Normal, Standard charge, Low-temperature charge, AGM charge/discharge
Add-on Features:
Digital Power: CC/CV Mode
Brushed Motor Run-In
Battery Voltage Meter
