MPN Lii-402-TBrand Liitokala
Compatible Battery Sizes 21700 26650 18650 17670 18350 16340 14500 A AA AAA
Compatible Battery Type Li-ion Ni-Mh Ni-Cd
Charger Type USB
Product Type Battery Charger & Converter
Battery Size A AA AAA C SC Li-ion Ni-Mh Ni-Cd
Battery Type Li-ion Ni-Mh Ni-Cd
Feature:
Identify Li-ion and Ni-MH automatically; But, you need to adjust the charge mode for LiFePO4 and 3.85V li-ion battery.
It can active 0V rechargeable battery but the charger don’t charge 1.65V ~ 1.85V battery types.

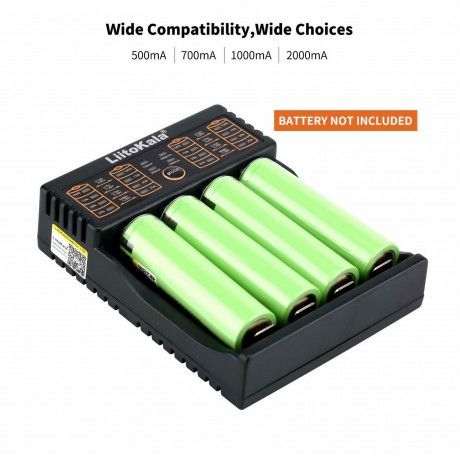

Four charging current mode (500mAh/700mAhn/1000mAh/2000mAh), 2000mAh current mode is fixed only on the fourth slot.
Charging under constant voltage and current.
Input by DC interface and working voltage is 5V-2A (Micro plug).

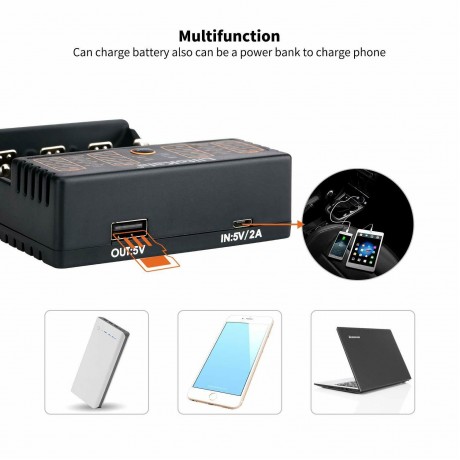

Built with 5V/1000mAh USB discharge (output) function.
It can detect the Li-ion and Ni-MH battery type and charge the battery automatically under your selected charging current,
Specification:
0pen-circuit voltage of USB output : 4.9-5.3V; and the 4th slot is fixed for the USB discharge power source
Output current: 1000mAh
Open circuit current: <1mAh
The corresponding voltage is 4.75-5.25V under 1000mAh current
Cut-off voltage for discharge protection: 3.0±0.1V
Li-ion / IMR: 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
compatible with (18650, 26650, 26500, 22650,21700,20700, 18490, 17670, 17500, 17355, 16340, 14500, 10440, A, AA, AAA,C SC sizes)

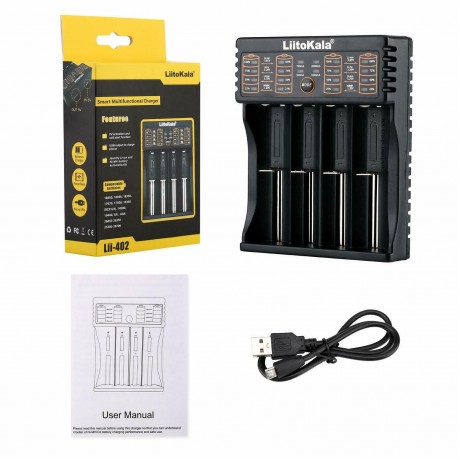

Included:
1 x battery charger
1 x USB data cable
1 x User Manual
