TRAXXAS 4-TEC Drift Ford Mustang 1/10 2WD RTR
Inspired by real drift cars from Japan, Europe, and the USA, TRAXXAS presents the ultimate drift model based on the 4-TEC 2.0 – the 4-TEC Drift with an officially licensed Ford Mustang body! The body not only gives the car an authentic look but also delivers impressive performance.
With the brand-new TSM Drift technology, this model offers a unique RC experience that will thrill you both indoors and outdoors on various surfaces. The 4-TEC Drift's easy handling makes it ideal for beginners in the world of drifting.
Be inspired by the combination of style and technology and experience drifting on a whole new level!
Features:

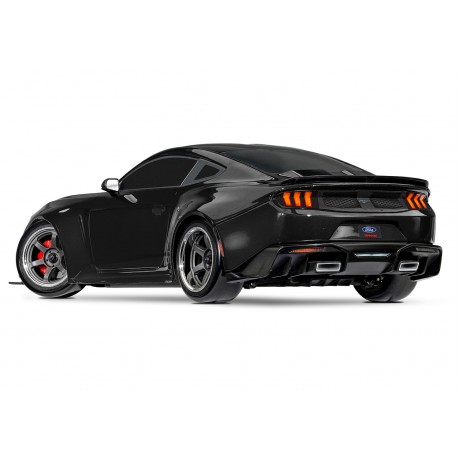

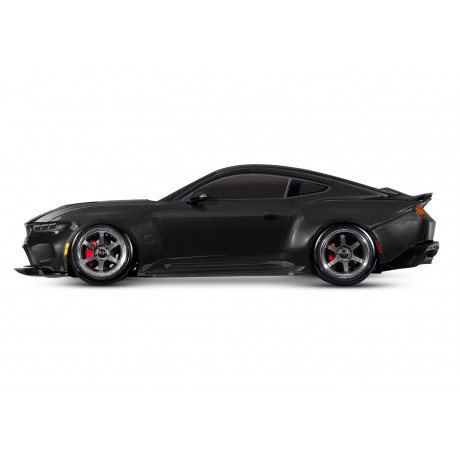

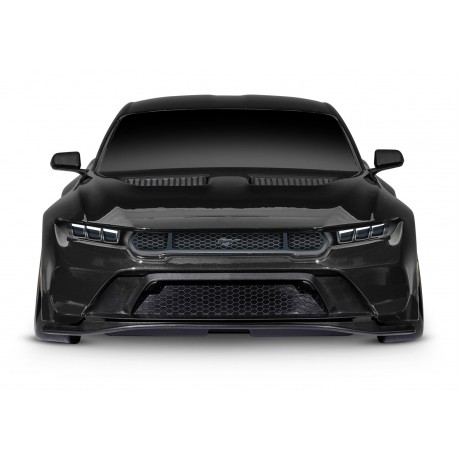

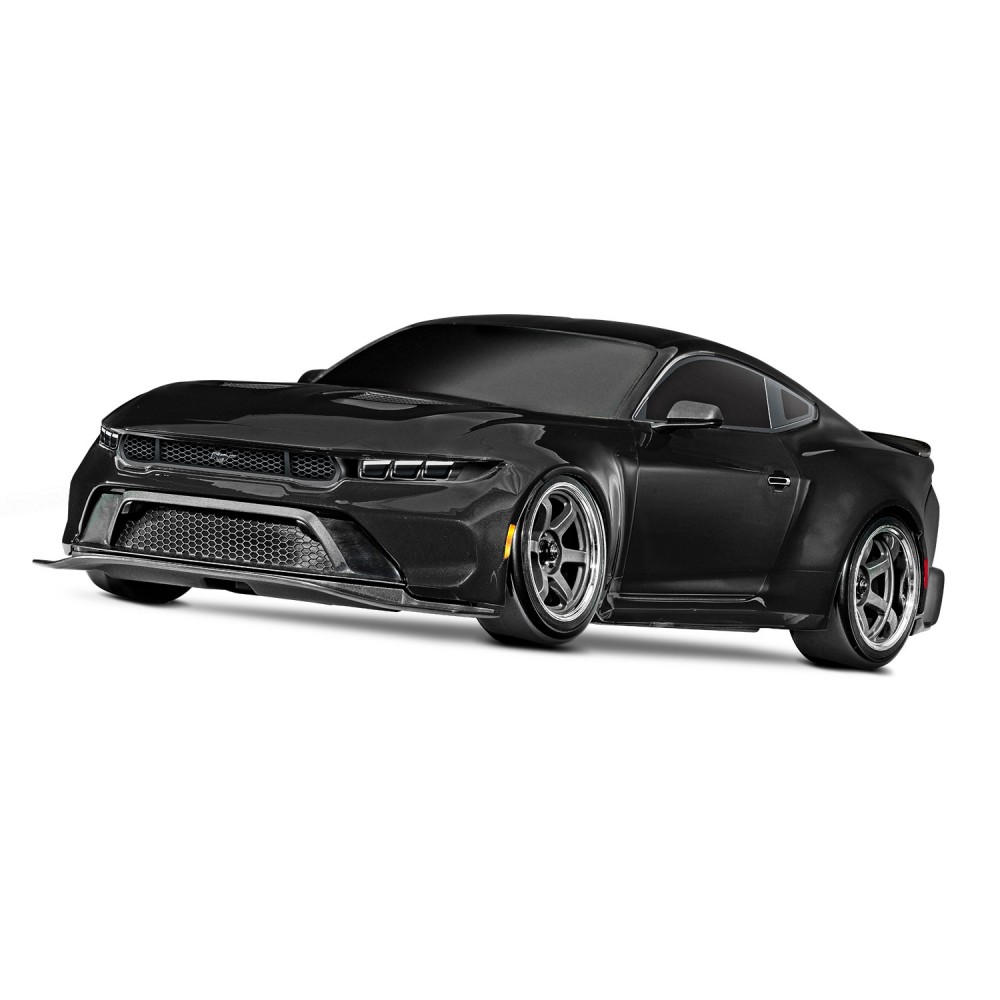

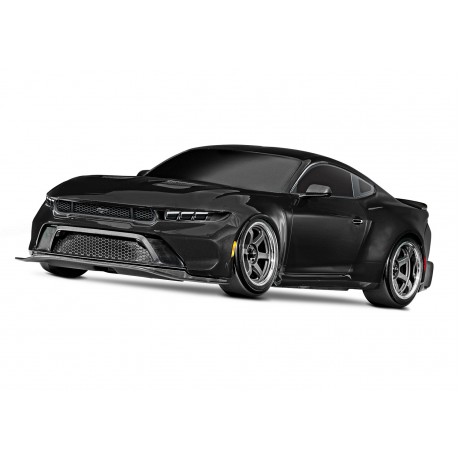

• Officially licensed Ford Mustang body
• Clipless body mounting

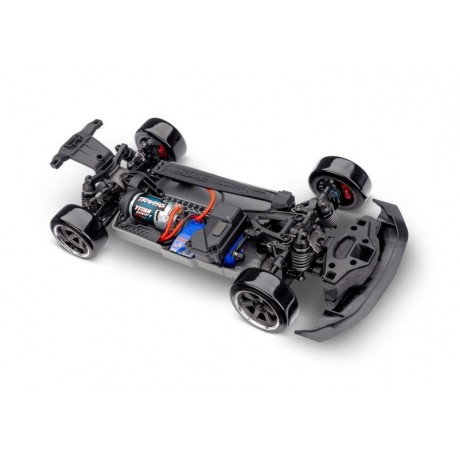

• 200mm chassis with 2WD rear-wheel drive
• Large 60° steering angle
• TQi 2.4GHz wireless radio system
• Advanced TSM drift technology replaces old-fashioned drift gyros
• Three customizable drift profiles with app control: TSM Drift / TSM / Gyro
• Electronic handbrake
• Titan Drift 21T 550 motor
• Waterproof XL-5 speed controller
• Digital high-torque 2075 servo
• Waterproof electronics box
• Ultra oil-filled shock absorbers
• 48dp limited-slip rear differential (spool)
• Fully ball-bearing equipped with seals
• Adjustable turnbuckles
• Foam bumpers with splitters
• Hard and soft 1.9" drift tires (no additional wheels included in the kit)
• Satin-finished spoked wheels with chromed frames
Technical Specifications:
• Length: 463mm
• Width: 201mm
• Height: 131mm
• Wheelbase: 257mm
• Ground Clearance: 12mm
• Gear Ratio: 11.13:1
• Tire Diameter: 2.7" (69mm)
• Rim Diameter: 1.9"
• Rim Width (front/rear): 26/30mm
• Spline Ratio: 48dp
• Battery Dimensions: 158x46x23/26mm
• Weight: 1.52kg (without battery)
Required Accessories:
• 7.2-8.4V NiMH or 2S LiPo battery
• Charger (e.g., TRX2971)
• 4x AA batteries for transmitter
Drifting Instructions:
Start slowly. Drifting is about style and flow, not lap times. With increasing experience, your speed will naturally increase.
1. Initiate a drift by steering in the direction of the turn and using one of the following three methods:
• Quickly press and release the electronic parking brake.
• Quickly tap the brakes with the throttle.
• Aggressively press the throttle to spin the rear tires.
2. Do not attempt to correct and counter-steer in the opposite direction once the car is rotating. The TSM Drift mode will counter-steer for the driver.
3. Apply smooth throttle to maintain speed and momentum through the turn. Don't worry about over-throwing. The TSM Drift mode will assist the throttle to maintain the drift angle.
4. Use small steering wheel inputs between neutral and in the direction of the turn to adjust the car's position within the drift height.
5. When it's time to change direction, turn the steering wheel in the direction you want the car to go.
• When the car With sufficient speed and momentum, the car can rotate and drift through the next corner on its own. The TSM Drift mode will counter-steer and modulate the throttle in the new direction.
• If there isn't enough speed and momentum, the driver must initiate the next corner drift by braking or accelerating.
MODEL SPECS
| Name: |
4-Tec Drift |
| Type: |
On-Road Cars |
| : |
1 |
| Scale: |
1/10 |
| Weight: |
3.35 pounds (1.52 kg) |
| Length: |
18.24 inches (463 mm) |
| Width: |
7.91 inches (201 mm) |
| Front Track: |
7.87 inches (200 mm) |
| Rear Track: |
7.87 inches (200 mm) |
| Height: |
5.15 inches (131 mm) |
| Wheelbase: |
10.11 inches (257 mm) |
| Center Ground Clearance: |
0.5 inches (12 mm) |
| Driveline: |
Rear-wheel drive |
| Differential Type: |
Spool |
| Gear Pitch: |
48 pitch |
| Steering Servo: |
2075 digital high-torque waterproof |
| Radio System: |
TQi™ 2.4 GHz 3-channel transmitter |
| Battery Compartment Specs: |
174 mm X 48 mm X 23 mm or 26 mm |
MOTOR SPECS
| Name: |
Titan Drift 21T 550 |
| Motor Type: |
High-torque brushed motor |
| Weight: |
8.47 ounces (240 g) |
| Length: |
3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
| Diameter: |
1.53 inches (39 mm) |
| Shaft Size: |
3 mm |
| Connector Type: |
Bullet |
ESC SPECS
| Name: |
Waterproof XL-5 ESC with low-voltage detection |
| ESC Type: |
Brushed |
| Case Size: |
1.23 inches (31 mm) / 2.18 inches (55 mm) / 0.61 inches (15 mm) |
| Weight: |
2.44 ounces (69 g) |
| Motor Connectors: |
Bullet |
| Battery Connectors: |
Traxxas High Current Connector |
| Power Wire: |
14 gauge |
