KONECT 80A Waterproof SCT ESC & 2750KV Motor & Program Card Combo Set

Combo ESC 80A SCT + brushless motor 3660 for car 1/10th Short CourseThis combo presents an unbeatable quality-price ratio, it is even delivered with the programming card of the esc for even more pleasure to use it.the esc is provided with a Deans type plug (T-plug) to connect a LiPo 2-3S battery.

Features

• Usable with all brushless, sensored, sensorless motors
• Starting power, acceleration and linearity
• Operation (forward with brake or forward and reverse with brake)
• 4 levels of brake adjustment and 8 levels of motor brake adjustment (drag brake force)
• 4 starting modes (punch) from low to very powerful
• Multiple protections: shutdown (low voltage, overheating, radio loss and motor lock)
• Splash and dust resistant
• Programming via switch or with programming card

Specifications

• Power : 80A continuous/520A peak
• Weight : 105g
• Waterproof
• Power supply 4 to 9 cells in nimh.
• Power supply 2 to 3S in Lipo
• BEC 6v 3A.
• Dimensions 49mm(L) * 39.5mm(W) * 34.7mm(H)mm with fan
• Connector DEAN male

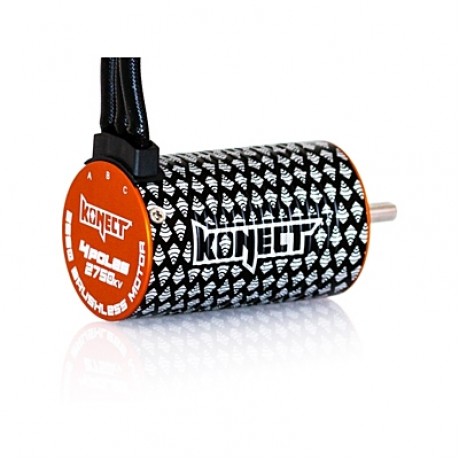

• Motor Type 3660 Brushless 4 Poles 1/10 Sensorless 2750Kv
  axis 5mm, length 60mm, diameter 36mm

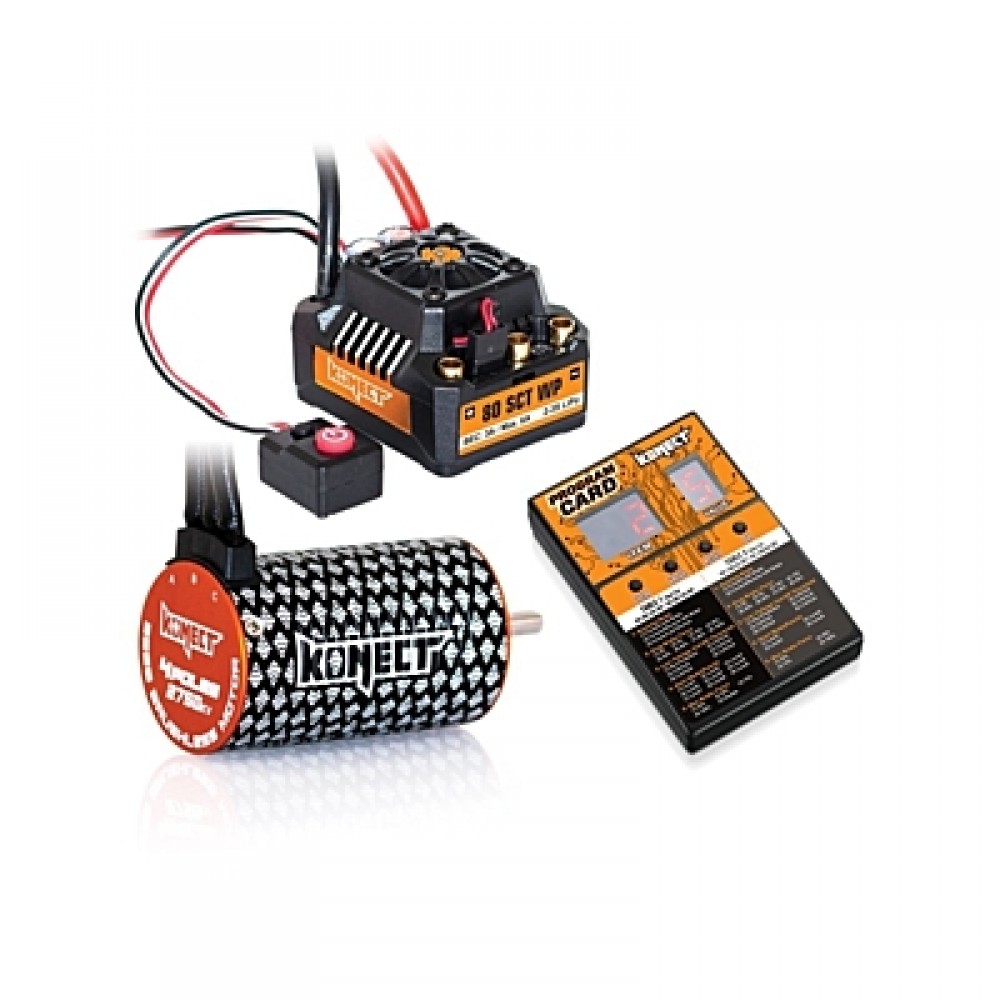

Contents of the box

• 1 brushless esc 80A
• 1 brushless motor 3660 kV 2750
• 1 programming card for the esc
