For the
pure enjoyment of R/C car driving, the combination of a beautifully
reproduced car body with the FAZER series chassis can’t be beaten.
Kyosho has taken its standard touring car chassis and given it a full
model makeover that has evolved performance to a new level. A simplified
design with fewer parts has improved maintenance efficiency and reduced
weight while core strength and rigidity has been increased through new
materials and ribbing and stiffeners on front and rear. In addition, the
symmetrical chassis design synergizes excellent front-rear balance
through the suspension with responsive control, irrespective of power
source. Featuring front & rear gear differentials, oil shocks and
full ball bearing specs, the high durability and impact resistance
allows drivers to unleash the full potential of the chassis. Brake disc
wheel hubs with two different offsets (0mm, +5mm) provide compatibility
with 190mm and 200mm width body styles and allows the wheelbase to be
adjusted to 270mm by replacing some parts (sold separately) for
compatibility with other 1/10 scale body styles, in addition the body
included. The Readyset package comes fully assembled and includes
everything except charger and battery for the chassis, and batteries for
the transmitter.

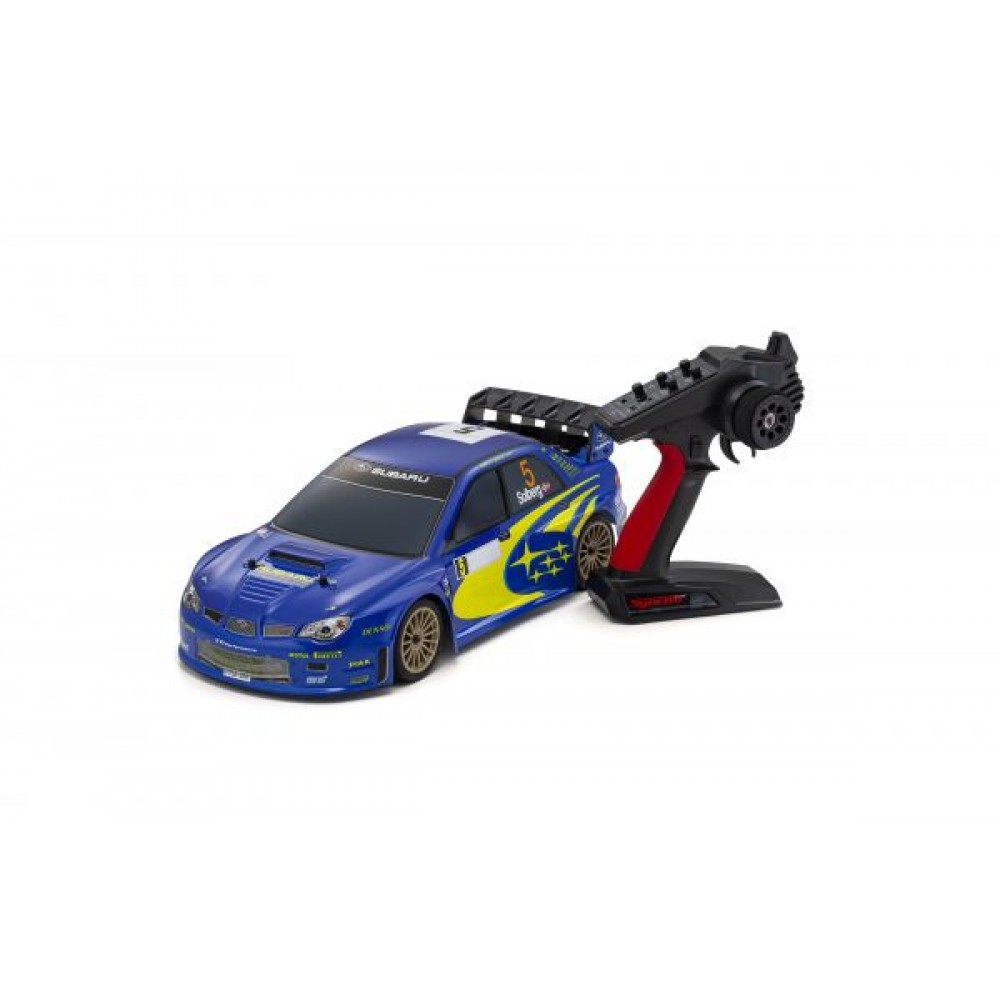

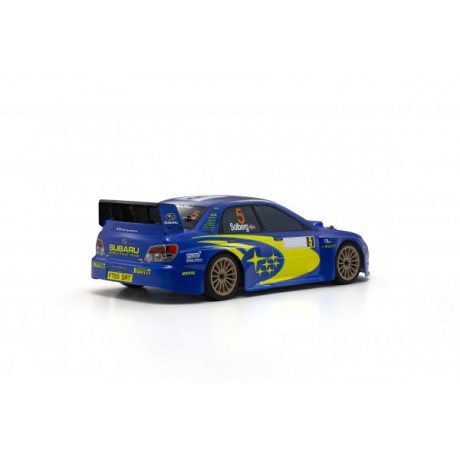

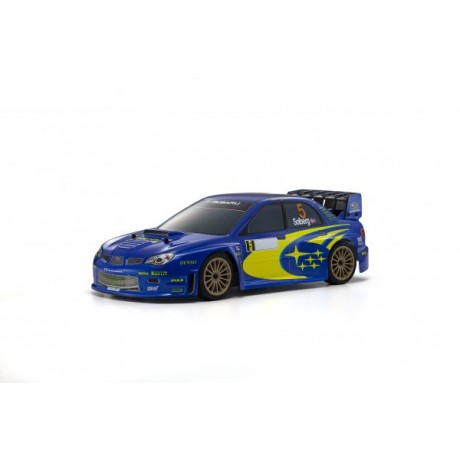

●The body is the "Subaru Impreza WRC 2006" that participated in the
2006 World Rally Championship (WRC) wearing bright WR blue and six-star
coloring that shines yellow. The body specifications are semi-assembled
specifications in which the customer finishes the decals such as the
Subaru logo to WRC specifications.
●Original low-profile semi-slick
pattern tires produce superior performance and combine with 15-spoke
wheels for stunning visuals.
●Factory-assembled Readyset package only
requires 4 x AA alkaline batteries for the transmitter, and battery
with charger for the chassis.
●Full ball bearings that reduce drive loss equipped throughout the drive system.
●Features KS202W steering servo.
●Sealed differential and transmission deliver reliable performance, even on dusty parking lot surfaces.

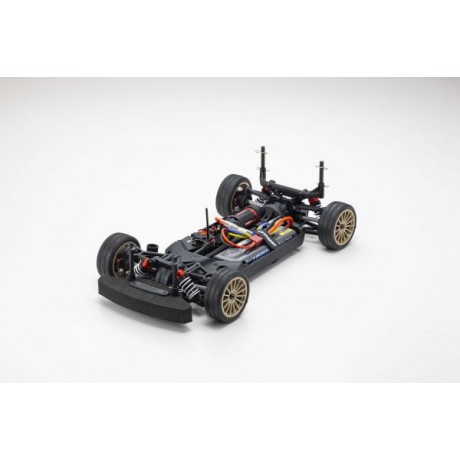

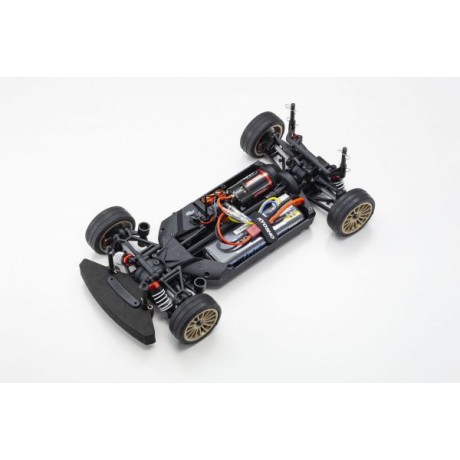

●Shaft drive full-time 4WD touring chassis（FZ02）.
●Equipped with a plated dummy brake disc and a painted brake caliper to improve the sense of scale.
●Uses
hex head screws in each part. Reliable tightening torque can be
applied, and maintenance is possible with even fewer tools.
●Since
the motor mount has mounting holes according to the pinion gear,
troublesome backlash adjustment is unnecessary. Supports from 29T to
37T.
●Performance can be further enhanced by installing various optional parts.
Technical Data:
■Length 500mm
■Width 210mm(Body width * excluding mirror)
■Height 136mm
■Chassis Height 8mm(approx.)
■Wheelbase 274mm
■Tread (F/R) 167mm
■Tires (F/R) φ64×27.7mm
■Gear Ratio 6.54：1
■Weight 1650g (approx.)
■R/C system &; Syncro KT-231P+
■Motor G14L
Kit Content:
●Completed chassis with R/C radio installed
●Factory assembled body complete with color scheme
●Syncro KT-231P+ transmitter
●Hexagonal wrench
●Spanner
●Setting change parts
Required for Operation:
●4 x AA batteries for transmitter
●Battery for chassis recommended: 7.2V Ni-MH battery or 7.4 Lipo battery
●Charger for battery for chassis
●Tools
( ΣΤΗ ΣΥΣΚΕΥΑΣΙΑ ΔΕΝ ΠΕΡΙΛΑΜΒΑΝΕΤΑΙ Η ΜΠΑΤΑΡΙΑ ΚΑΙ Ο ΦΟΡΤΙΣΤΗΣ )
